Место происхождения:
Шэньчжэнь
Фирменное наименование:
YUCERA
Номер модели:
СК-5А

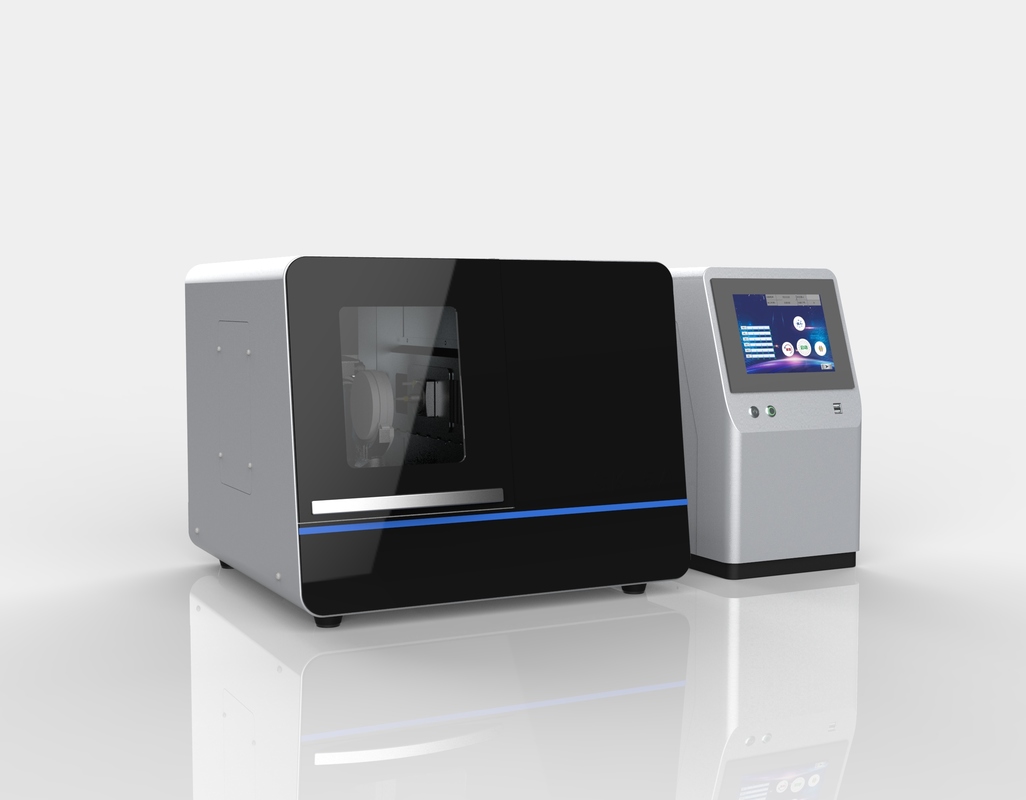

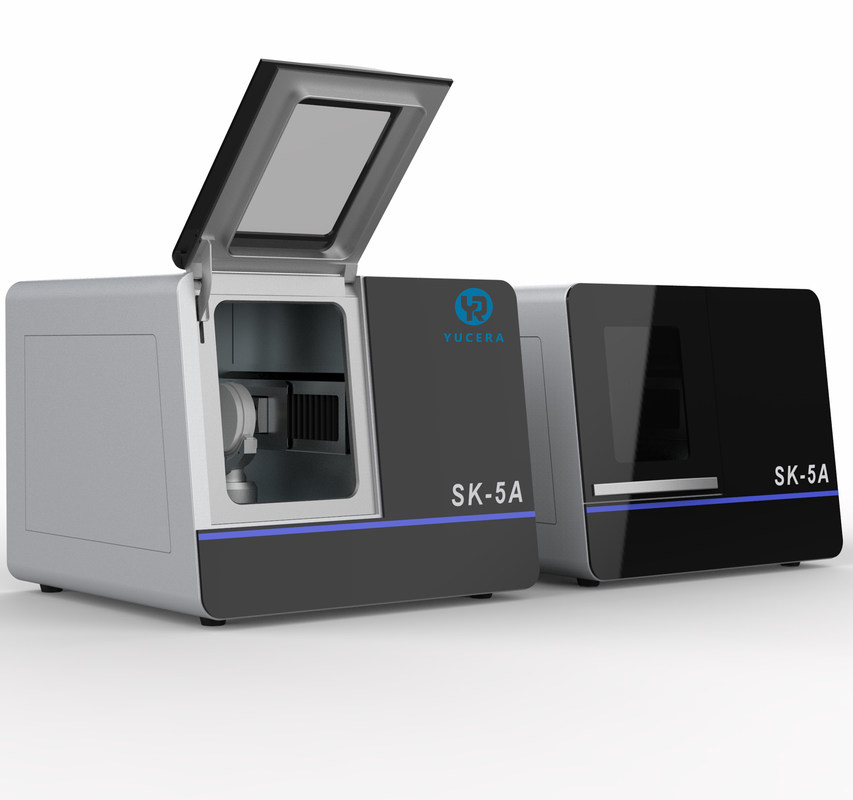

Stability Quality CAM CAD Dental Milling Machine Yucera Sk-5A Zirconia Dental Milling Machine For Lab
etailed specification of 5 axis dental milling machine:
|
Axis |
5 Axis |
|
Cut Method |
dry milling |
|
Milling Materials |
zirconia block, pmma, wax, PEEK |
|
Size of milling materials |
φ98, thickness(10-30mm) |
|
Range of rotation & tling rotation |
x/y/z: 105 / 135/ 90 A:360° B:±30° |
|
Speed of Principal axis |
0-60000rpm / 500w |
|
Driver |
Full rotation servo motor drive |
|
cutters |
5 tools; φ4mm |
|
size of dental 5aixs milling machine |
CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm |
|
G.W: of dental 5aixs milling machine |
CNC machine:95kg; Host milling machine:20kg |
|
Compressed Air: |
4.5-7.5bar;50ml/min |
|
Min Capacity-Dry: |
3000L/min |
Characteristics for 5 axis dental milling machine :
After 2 years of design and development,more than 100 dental labs tested, our Separation of mechanical and electrical control design to get unanimous praise:
1. Horizontal processing-speed can be increased by nearly 20%
2. simplifying maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;
3.Tool detection sensor with 2um
4.24hours on-line technical support
5.include hyperdent(free)
Advantage of Yucera 5 Axis dental milling machine:
Advantage of Yucera Sk-5A dental milling machine
1.The unique split design reduces the damage of dust to the main engine, makes maintenance easier, and increase the service life of the machine .
2.Horizontal milling machine put the center of gravity lower, so that the stability is higher, and the processing speed is increased by nearly 20%
3.Innovative C clamp design, compared with metal fixture, the utilization rate of zirconia blocks is increased by 30%
Please feel free to contact us for more information about the machine.

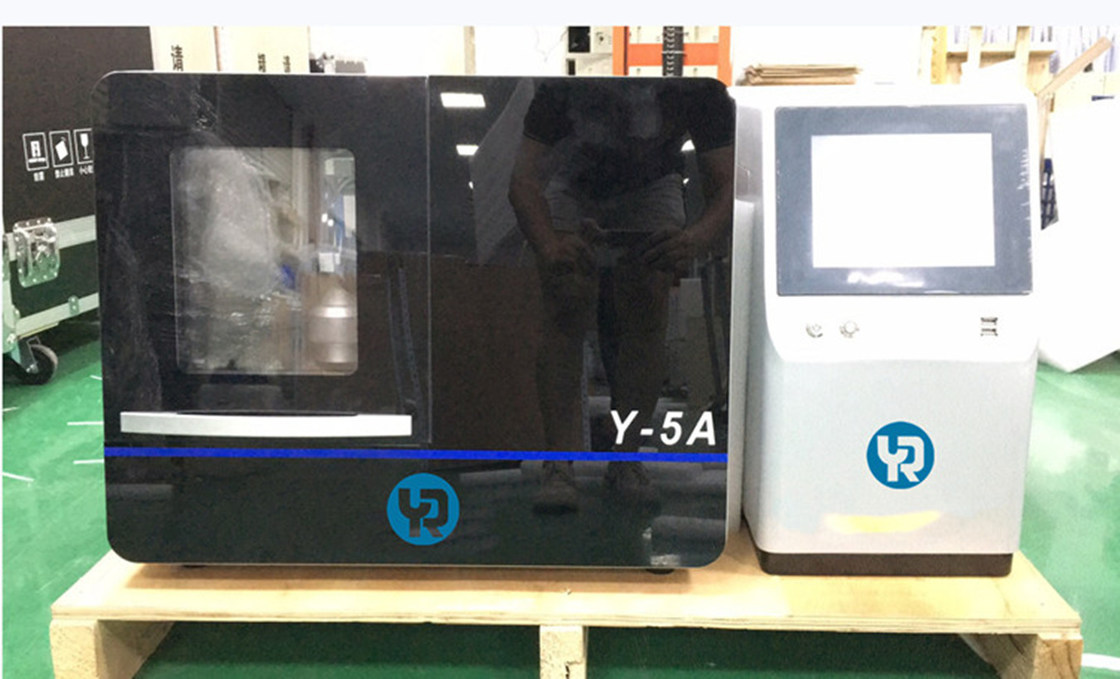

Open the package
Connect cutting machine,main machine and vacuum cleaner
Install the milling burs
Install zirconia block to the fixture
Starting the device
Horizontal center of gravity, faster and more stable
Five-axis linkage,
Daily dust maintenance
2.Why is Yucera-5A a split design?(Dental CAD CAM 5 Axis Milling Machine)?
Easy to maintain:
*When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;
*The control system is separated from the processing system to reduce the slight damage to the equipment caused by dust

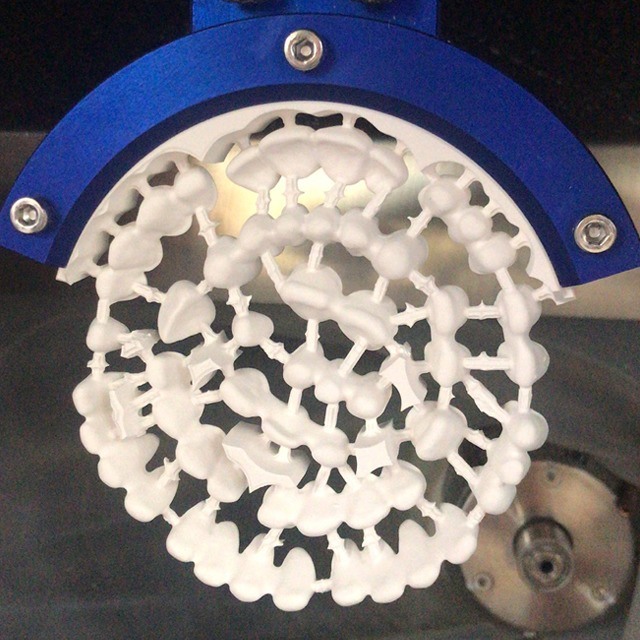

3.How many teeth can SK-5A cut at one time?(Dental CAD CAM 5 Axis Milling Machine)
*38-40 units crown/bridge.

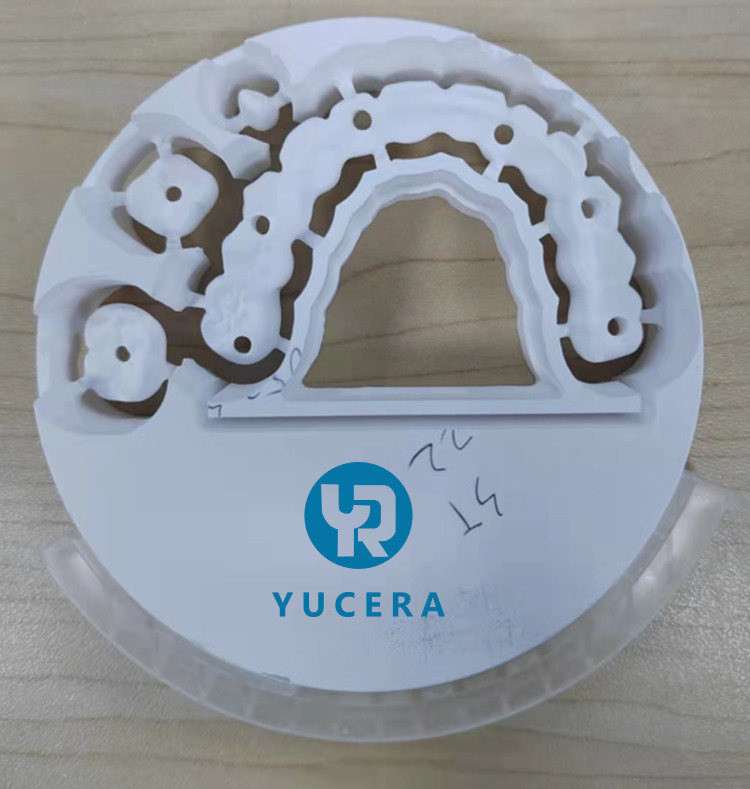

Innovative fixture design, compared with a metal fixture, the utilization rate of porcelain blocks is increased by 30%
Introduction for 5 axis dental zirconia milling machine:
Description for operation panel of 5 axis denal milling machine :

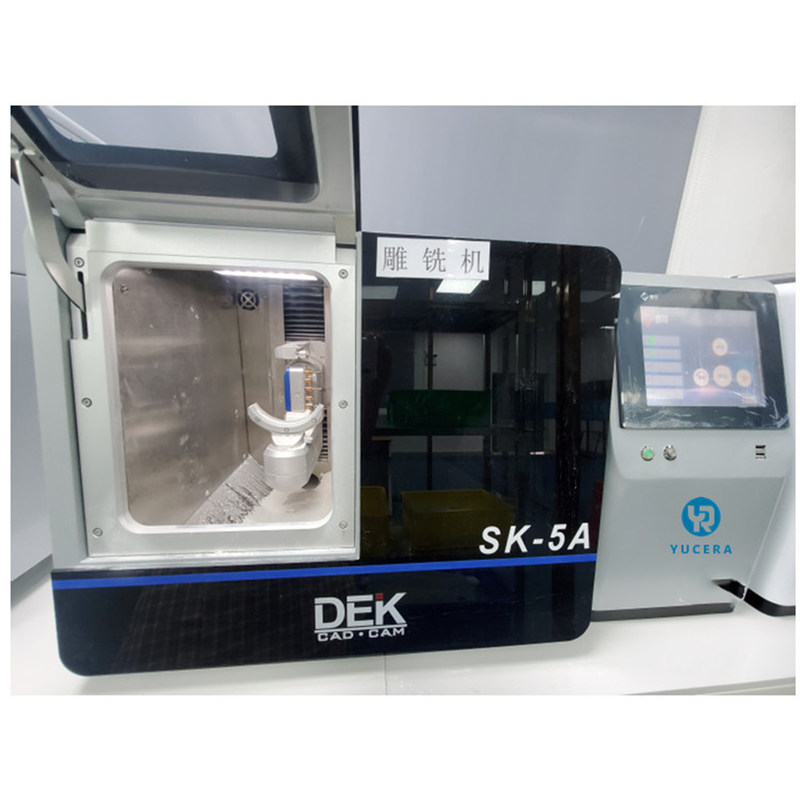

Description for working cabin of CAD CAM 5 axis dental milling machine:
Packaging for zirconia block: Each dental zirconia block will be packed into a box with protective ployfoam inside. Outside one more big carton with waterproof membrance.
Shipping: these zirconia block shipped by sea or by air.
